Moore Machine to Mealy Machine Converter

What is a Moore to Mealy Converter?

The Moore to Mealy Converter is a powerful educational tool that allows you to transform any Moore Machine into its equivalent Mealy Machine. In automata theory, this conversion is essential because Mealy machines produce outputs based on both the current state and input, making them more responsive and often requiring fewer states.

Key Features of the Converter

• Automatically converts Moore states into equivalent Mealy transitions.
• Ensures each state-output mapping is converted into input/output-labeled transitions.
• Generates structured transition tables and interactive state diagrams.
• Supports multiple states, inputs, and outputs for advanced FSM designs.
• Ideal for automata theory learning, circuit optimization, and computational modeling.

How to Use the Converter?

1. Input Data: Enter your Moore machine states and transition rules.
2. Click Convert: The tool generates the equivalent Mealy machine automatically.

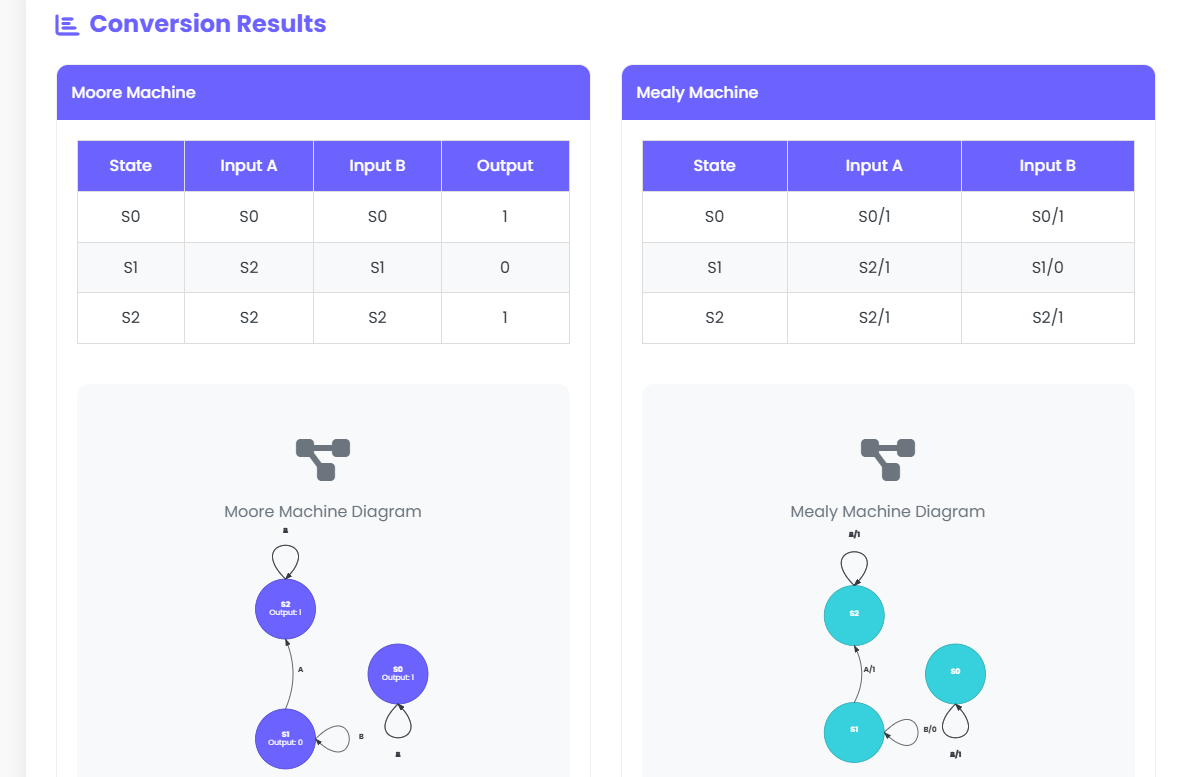

3. Review Tables: Compare Moore and Mealy transition tables side by side.
4. View Diagram: Explore interactive state diagrams with labeled transitions.
5. Download Results: Export in multiple formats for homework, research, or reports.

Why Use a Moore to Mealy Converter?

Converting Moore machines to Mealy machines provides efficiency and reduces the total number of states. Since Mealy outputs depend on both states and inputs, the models are more compact and flexible. This makes them highly useful in:

• Designing optimized sequential digital circuits.
• Pattern detection and real-time input response systems.
• Modeling embedded controllers and real-world systems.
• Teaching automata theory with comparative visualization of FSM types.

Algorithm for Moore to Mealy Conversion

The conversion follows a structured method:

1. Identify Outputs: For each Moore state, note the fixed output associated with it.
2. Map Transitions: For each transition, combine the Moore output with the input label.
3. Create Mealy Transitions: Each input transition is labeled as input/output.
4. Build Transition Table: Replace Moore’s state-output pairs with Mealy-style input/output mappings.
5. Draw the Diagram: Represent states with transitions labeled by input/output.
6. Mark the Start State: Clearly indicate the initial state with an incoming arrow.

Tips for Using the Converter

• Ensure Moore states have clearly defined outputs before conversion.
• Label inputs and outputs consistently to avoid confusion.
• Export diagrams in SVG or PNG for projects and reports.
• Use the generated table to verify logic correctness for circuit design.

About the Moore to Mealy Converter Tool

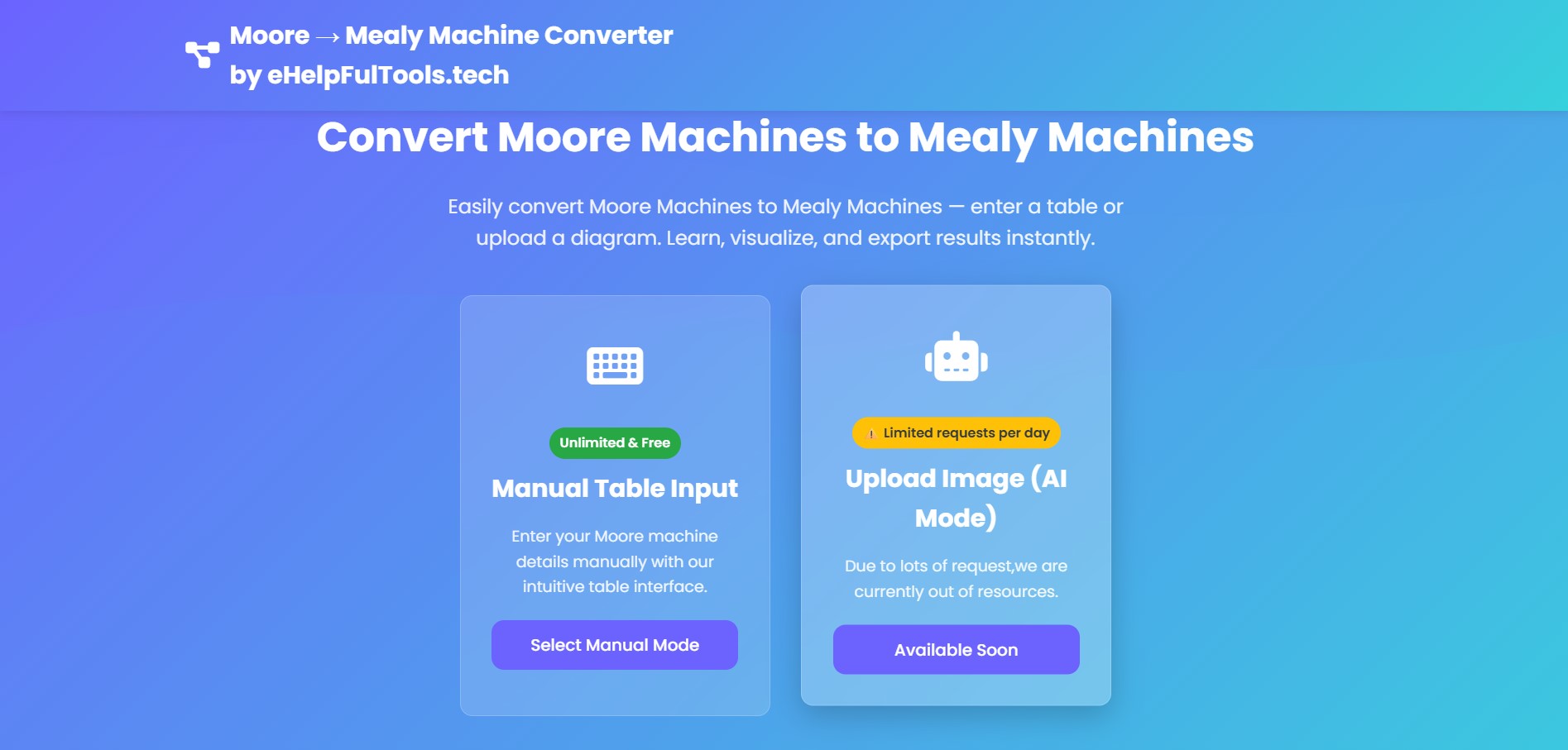

The Moore to Mealy Converter Tool is a free, browser-based solution designed for students, educators, and engineers. It allows you to input a Moore machine and generate the equivalent Mealy machine instantly, with both tables and diagrams provided.

With support for multiple states, inputs, and outputs, it provides interactive visualization of both Moore and Mealy machines. This makes it perfect for academic use, digital logic design, and research applications.

Why Use Our Converter?

• Accurate Conversion: Built on formal automata theory rules for Moore → Mealy transformation.
• Interactive Diagrams: SVG-based visualization with labeled transitions and loops.
• Download Support: Export results as CSV, JSON, SVG, or PNG.
• Free & Secure: Runs completely in your browser with no data tracking.
• Educational & Practical: Useful for both theory learning and real-world applications.

Key Features

Who Can Benefit from This Tool?

• Computer Science Students: Practice FSM conversions for automata theory exams and assignments.
• Educators: Use interactive diagrams to explain FSM concepts in class.
• Researchers: Validate theoretical models with accurate Mealy representations.
• Engineers: Apply Mealy machines for optimized circuit and system design.
